Products >> Power Adapter >> 12V

  • 12v 1a power adapter
  • 12v 1a power adapter
  • 12v 1a power adapter
  • 12v 1a power adapter
12v 1a power adapter 12v 1a power adapter 12v 1a power adapter 12v 1a power adapter

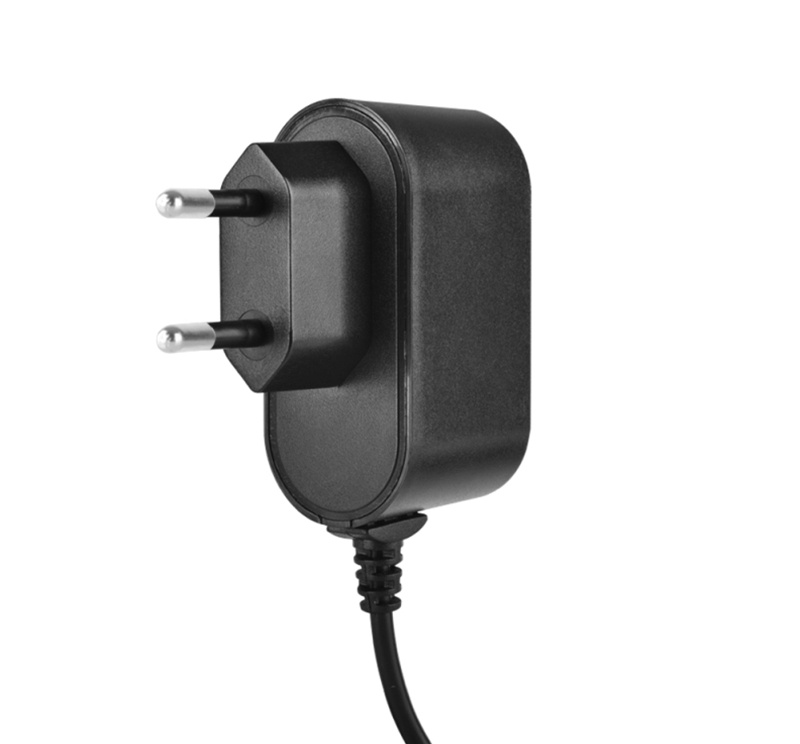

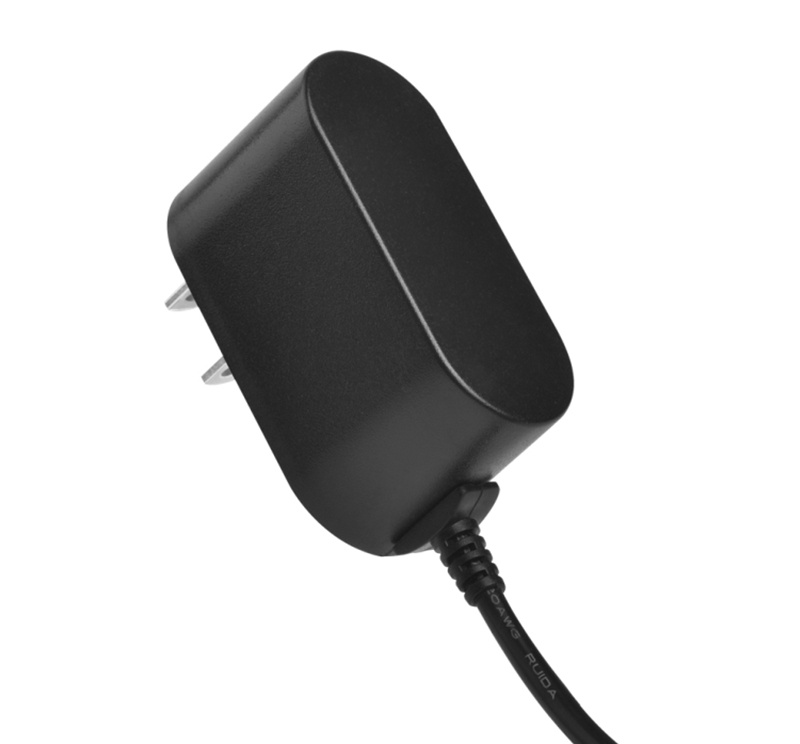

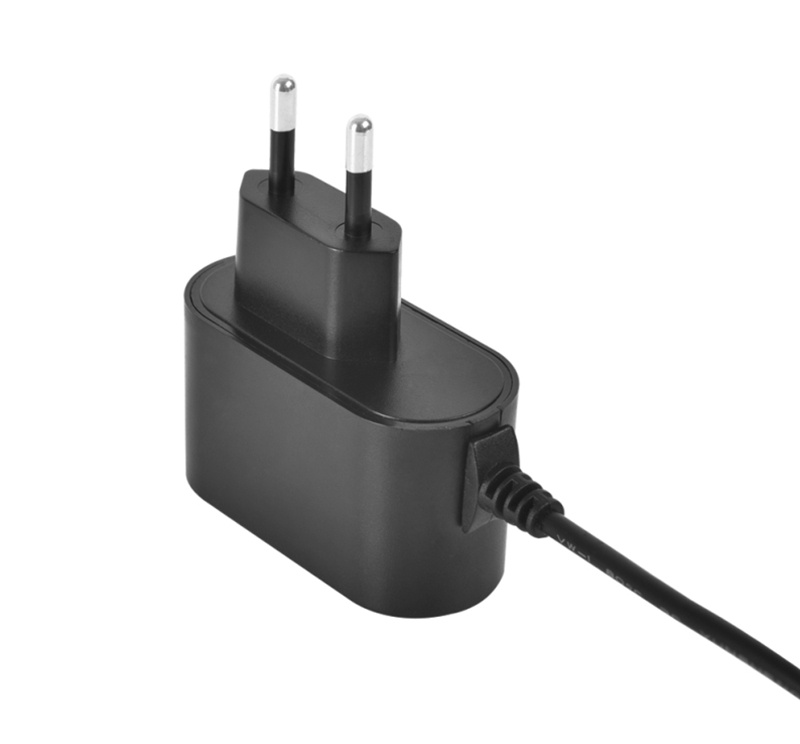

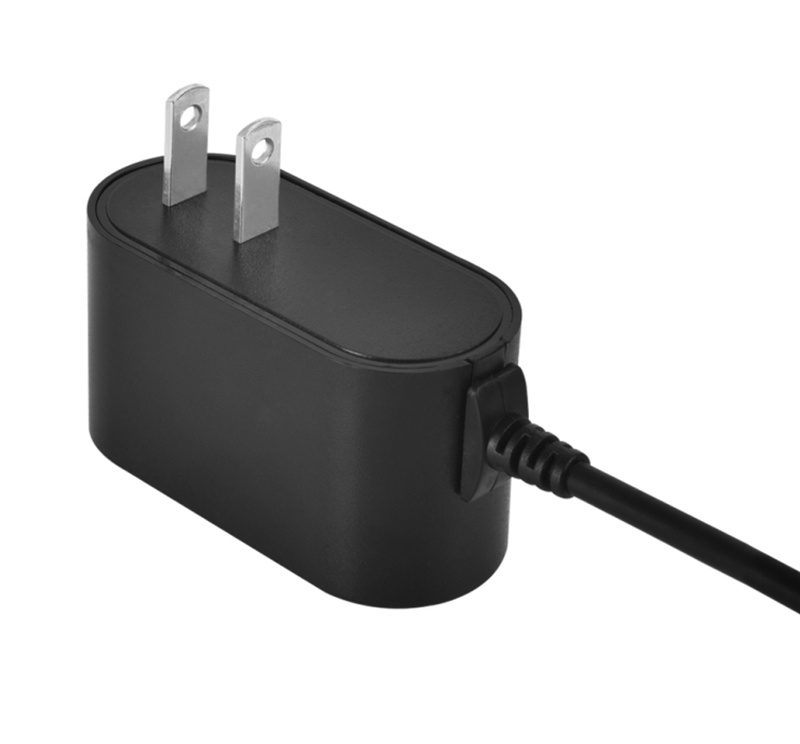

12v 1a power adapter



    ■   Connector: 2.1/5.5mm Plug ( optional )

    ■   Input: AC100 ~ 240V, 50/60Hz, 1A max

    ■   Output: DC12V, 1000mA

    ■   Dimensions: 61.5 (L) x 26.8 (W)x 34.3 (H)  mm

    ■   UL CE FCC RCM TUV CB  Listed , Wire Length: 5 Ft

    • Description








    body size 61.5*26.8*34.3mm
    Input Rated Voltage 86Vac～264Vac
    Input Frequency Range 47Hz～63Hz
    Input Current 0.3A(Max)
    Input Inrush Current 50A
    Efficiency 78.8% ,level VI
    DC Output Voltage 12v±5%
    DC Output Rated Current 1000mA
    DC Output Power 12w
    Ripple and Noise ≤80Mv
    Turn On Delay Time ≤3S (AC:110V and full load)
    Standard UL/CUL FCC CE CB
    cable length 1.2m 2464 type ( optional )
    DC connector TYPE C ,Micro 5pin ,5.5*2.1/2.5*12mm ( optional )
    Dielectric Withstand Voltage A IEC320 3 pin input---output(FG)3K Vac 1 m
    Protection OVP ,OCP,SCP,OTP
    Leakage Current ≤5Ma
    Operating Temperature Range 0℃----+55℃
    Storage Temperature -20℃----+85℃




Next Product：dc 12v 5a or 24v 2.5a 60 watts power supply wall model
