Products >> Power Adapter >> 24V

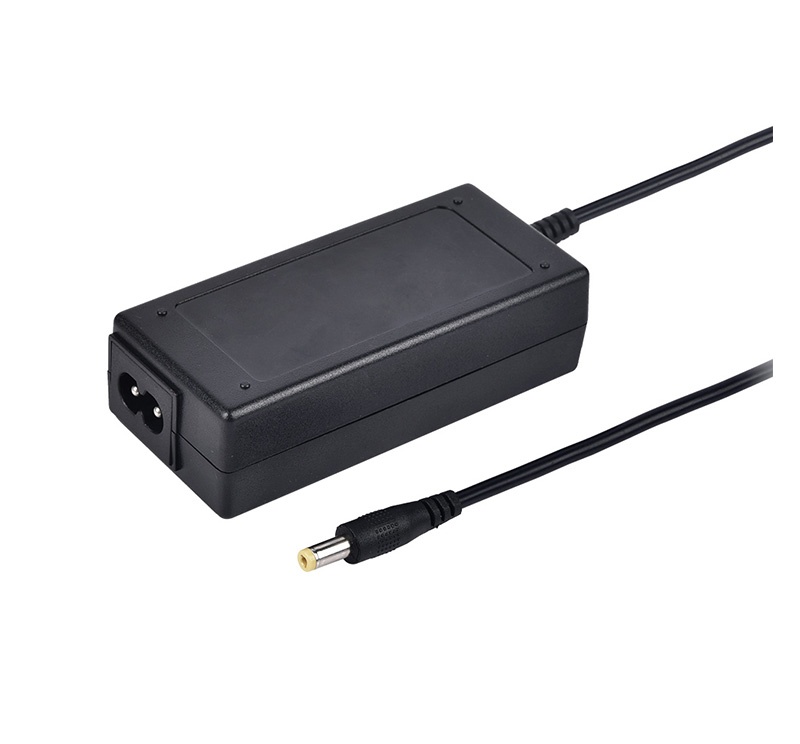

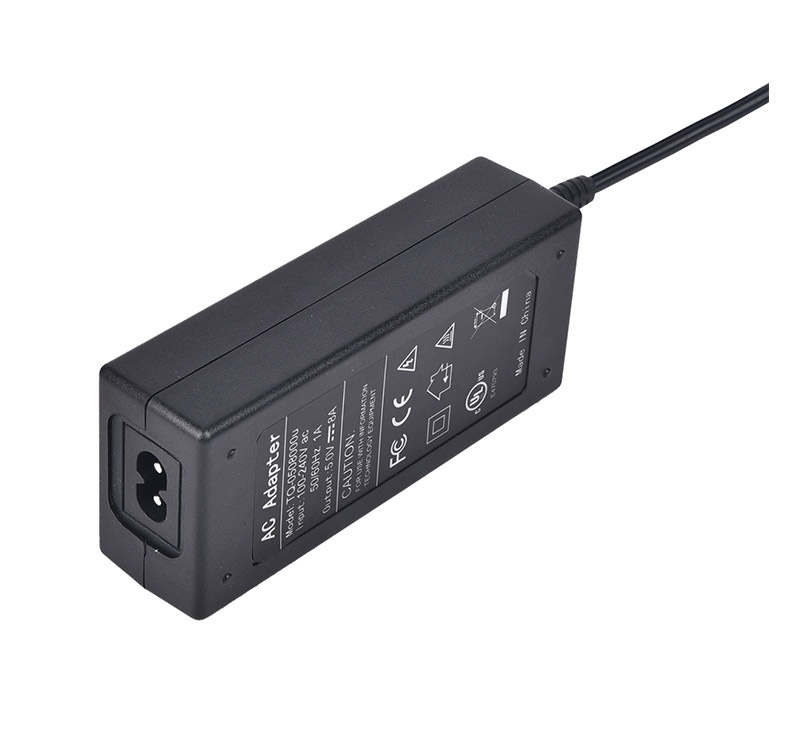

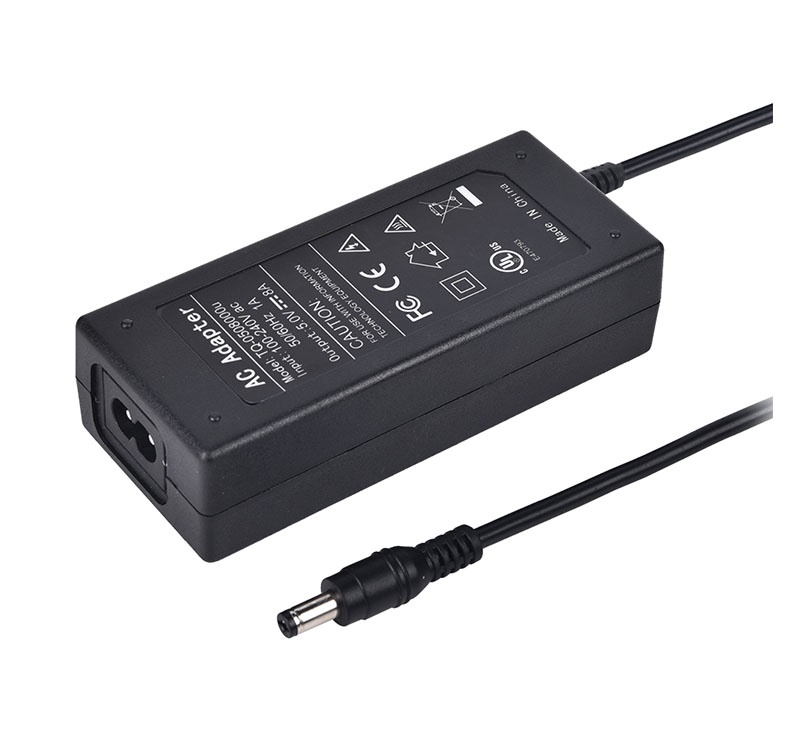

24v 4a 5a power supply

100-240V AC input 50/60HZ, DC 24V 5Amp / 4Amp output, 120 Watt max wattage
Convert 100-240V AC to 24V DC, widely use for SMD2835 3528 5050 RGB LED strip lights, LED string, wireless routers, ADSL Cats, HUB, switch, security camera, Audio/Video power supply
Please be kindly informed that the total wattage of your device should not exceed the max wattage（120 Watt) of this adapter
1 x 24V 5A / 4A 120W ( max ) power supply with 5ft power cord, 1 x 5.5/2.1 DC female barrel connector ( optional )

have 2pin and 3pin ac socket for optional

body size	1606035mm
Input Rated Voltage	86Vac～264Vac
Input Frequency Range	47Hz～63Hz
Input Current	0.8A(Max)
Input Inrush Current	50A
Efficiency	88%, level VI
DC Output Voltage	24v± 5%
DC Output Rated Current	5000mA / 4000mA
DC Output Power	120w ( max )
Ripple and Noise	≤180Mv
Turn On Delay Time	≤3S (AC:110V and full load)
Standard	UL/CUL FCC CE CB
DC cable length	1.5m 2464 type ( optional )
DC connector	5.52.1/2.512mm ( optional )
Dielectric Withstand Voltage	A IEC320 3 pin input---output(FG)3K Vac 1 m
Protection	OVP ,OCP,SCP,OTP
Leakage Current	≤5Ma
Operating Temperature Range	0℃----+55℃
Storage Temperature	-20℃----+85℃
