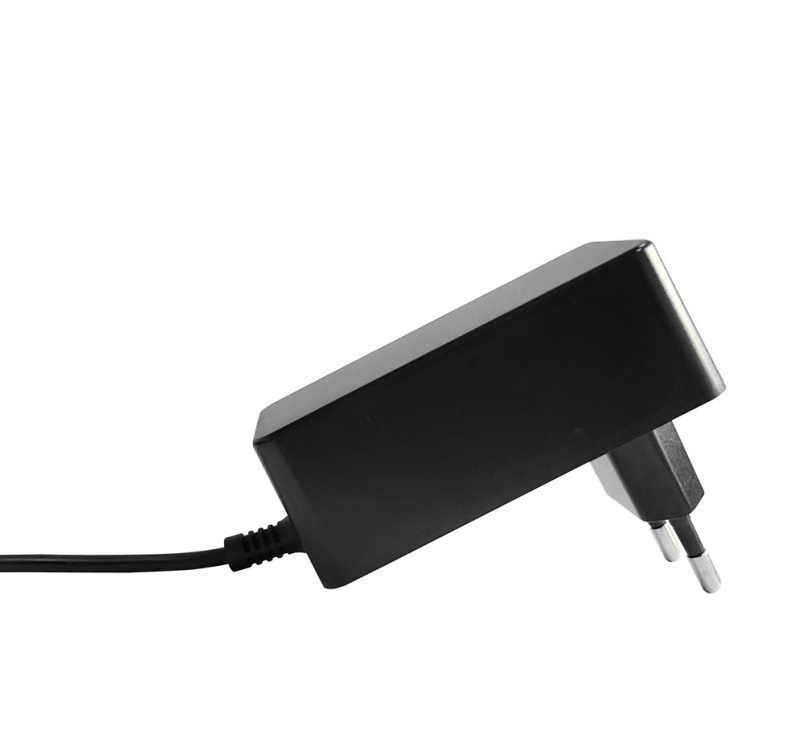

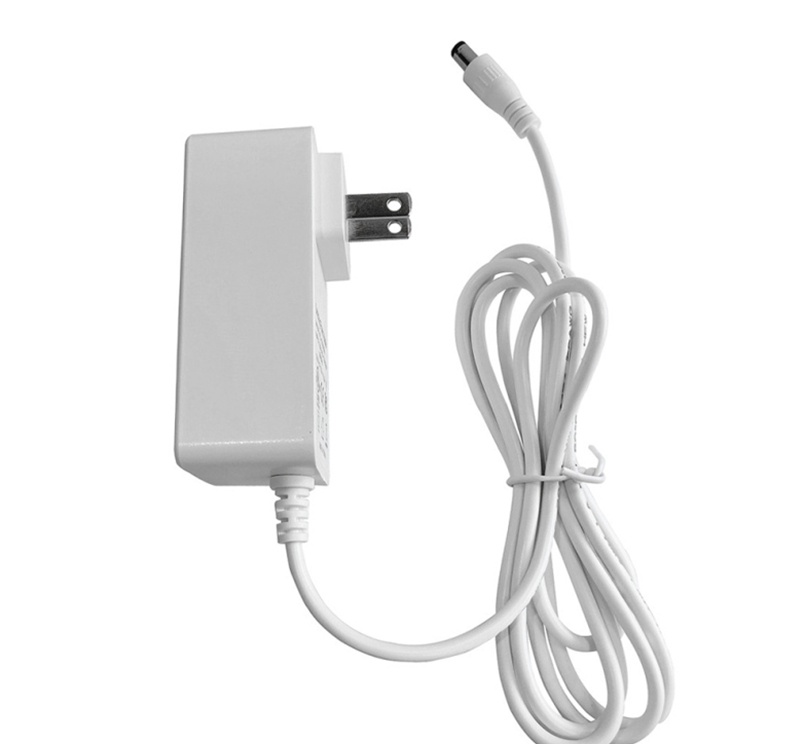

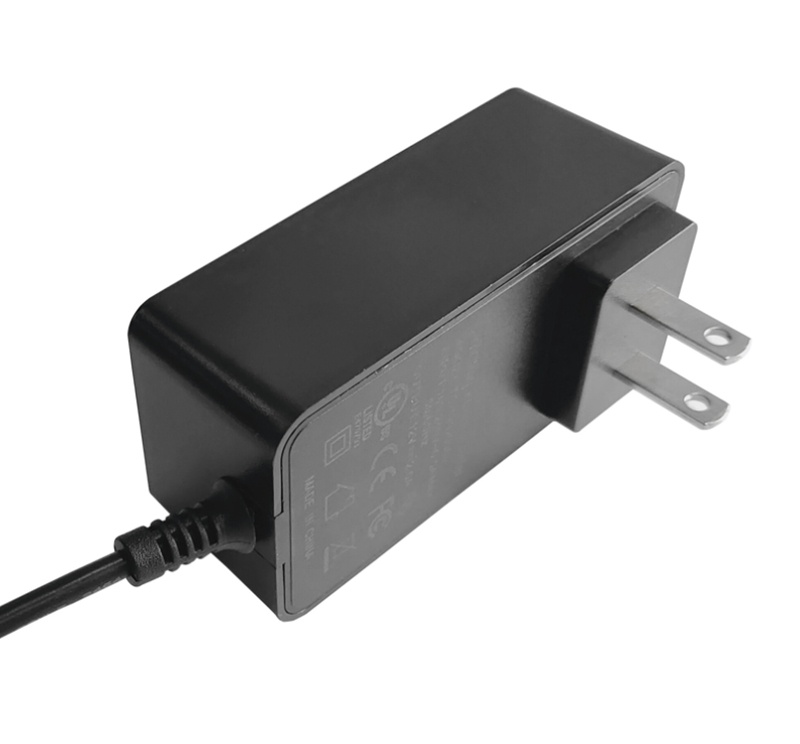

24v power supply 2a 2.5a 3a output 72w max

100-240V AC input 50/60HZ, DC 24V 2A 2.5A 3A output, 72 Watt max wattage
Convert 100-240V AC to 24V DC, widely use for SMD2835 3528 5050 RGB LED strip lights, LED string, Air purifier devices, Audio/Video power supply
Please be kindly informed that the total wattage of your device should not exceed the max wattage（60 Watt) of this adapter

1 x 24V power supply with 5ft power cord, 1 x 5.5/2.1 DC female barrel connector ( optional )

body size	914630mm
Input Rated Voltage	86Vac～264Vac
Input Frequency Range	47Hz～63Hz
Input Current	0.8A(Max)
Input Inrush Current	50A
Efficiency	88%, level VI
DC Output Voltage	24v± 5%
DC Output Rated Current	2a / 2.5a / 3a
DC Output Power	72w ( max )
Ripple and Noise	≤120Mv
Turn On Delay Time	≤3S (AC:110V and full load)
Standard	UL/CUL FCC CE CB
DC cable length	1.5m 2464 type ( optional )
DC connector	5.52.1/2.512mm ( optional )
Dielectric Withstand Voltage	A IEC320 3 pin input---output(FG)3K Vac 1 m
Protection	OVP ,OCP,SCP,OTP
Leakage Current	≤5Ma
Operating Temperature Range	0℃----+55℃
Storage Temperature	-20℃----+85℃
